| Fhiaba S.r.l.

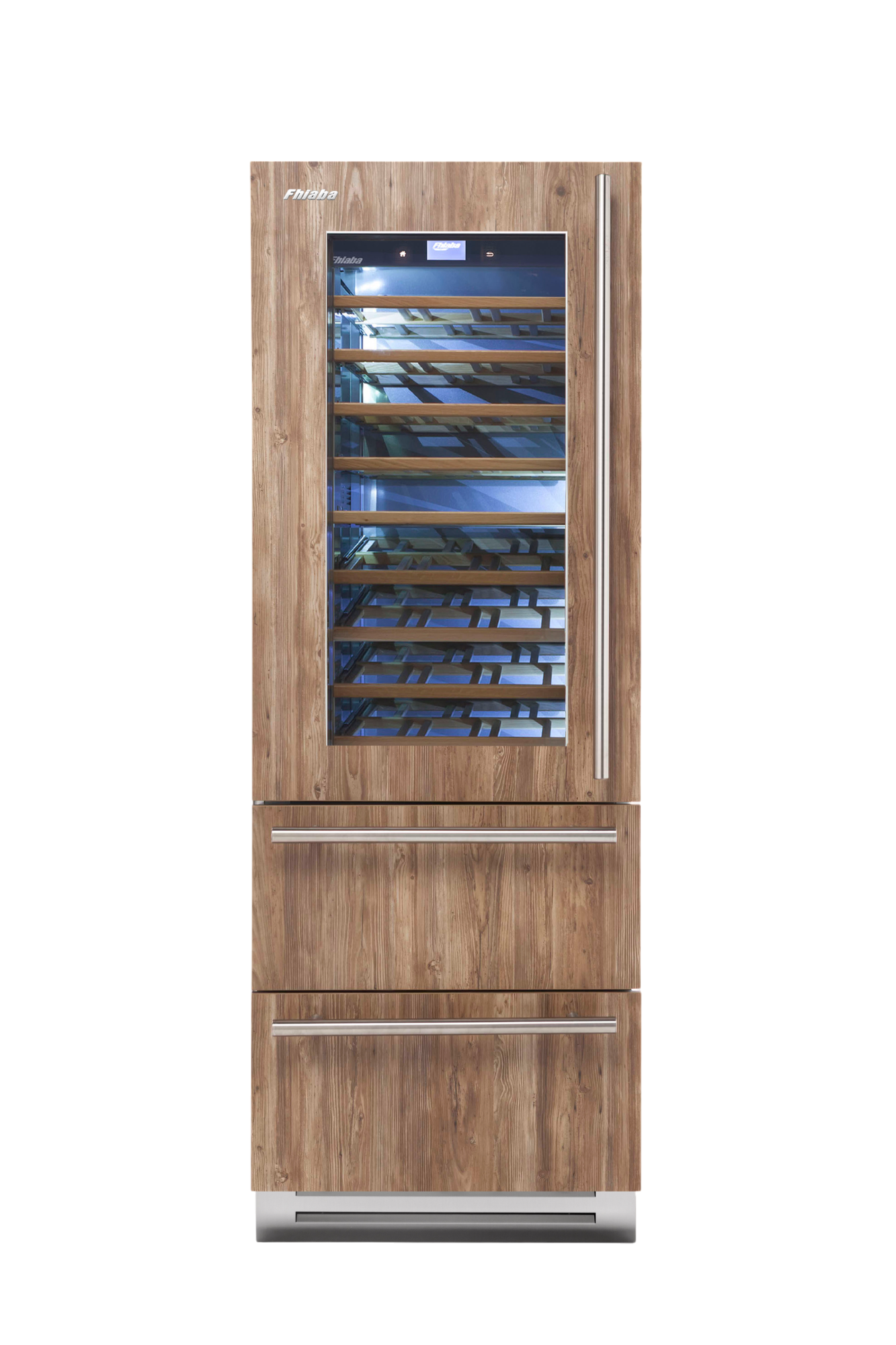

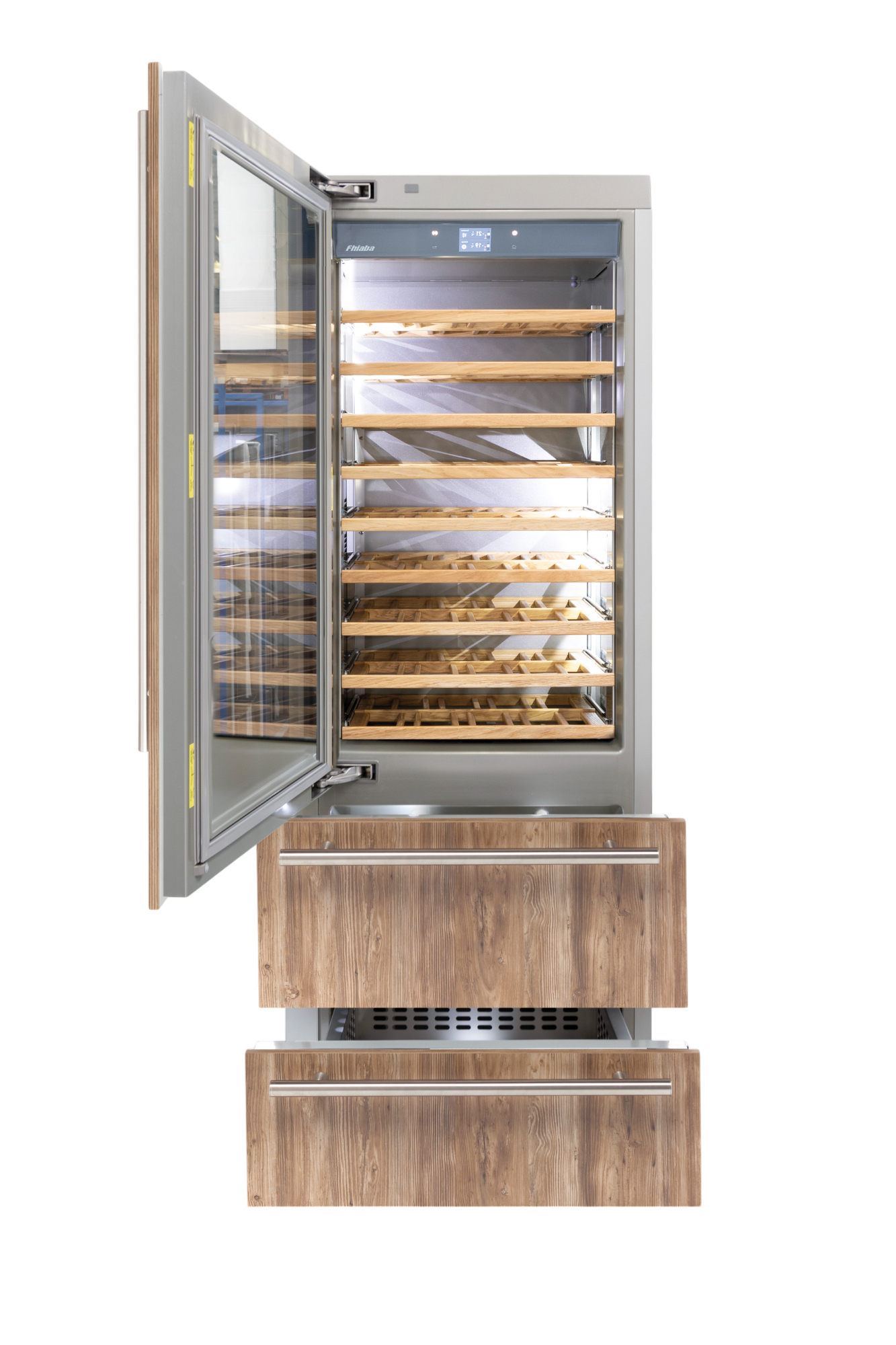

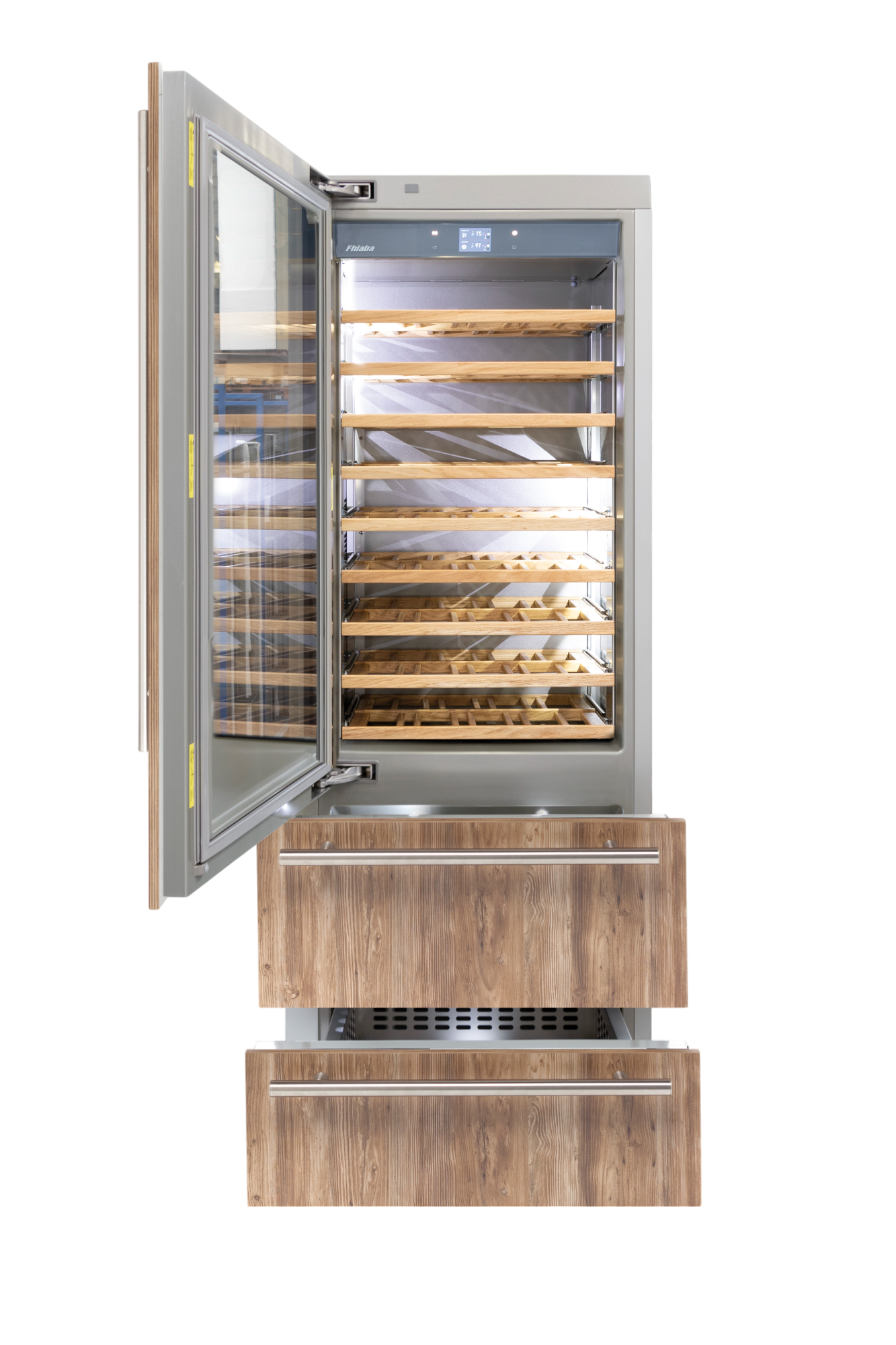

WINE CELLAR

SKU S750HWT3

Config

HEIGHT WITH CLOSED WHEELS

2050 cm

WIDTH

75 cm

PRODUCT IMAGE DETAILS

ATTACHED FILES

Installation guide

User manual

Catalog

Product sheet

CAD LIBRARIES

CAD DWG

CAD PDF

CAD SAT

CAD STEP

PDF 3D

PRODUCT DETAILS

Code S750HWT3

Categories INTEGRATED

Sales family WINE CELLAR

Family FROST FREE
WINE STORAGE REF.

Series code S

Width 75

DIMENSIONS AND WEIGHT

Product depth without handle 610 mm

Height with closed wheels 2050 mm

Packed product width 800 mm

Product width 749 mm

Net weight 167 kg

TECHNICAL DATA

Climatic class SN/T

TEMPERATURES

Climatic compartments 2

Upper temp min 4 °C

Upper temp max 18 °C

Low temp zone YES

Low temp min -15 °C

Low temp max -22 °C

FEATURES

Reversible door NO

Shelves type WOOD

No. of shelves 9

Even lift NO

No. of drawers 0

FREEZER FEATURES

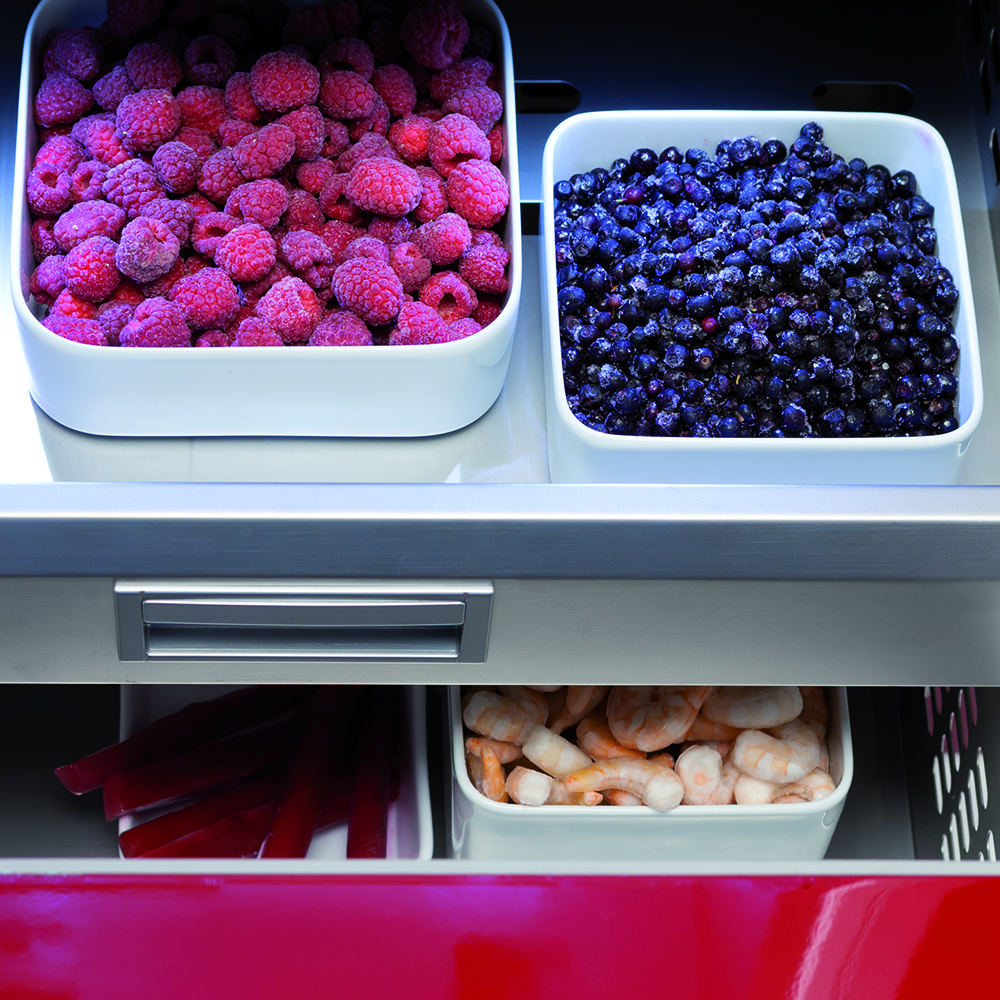

Freezer drawers 2

Ice maker NO

AESTHETICS

Installation mode FULLY INTEGRATED

Compressor position BOTTOM

Front finish CUSTOM PANEL

Interior material finish Stainless Steel

ACCESSORIES

Stainless steel sides panels YES

Stainless steel tub. hand 30mm YES

Stainless steel tub. hand 18mm YES

Water filter cart NO

Fhiaba link device YES

Painting NO

Door Stop 90° YES

WINE CELLAR ACCESSORIES

Wine kit YES

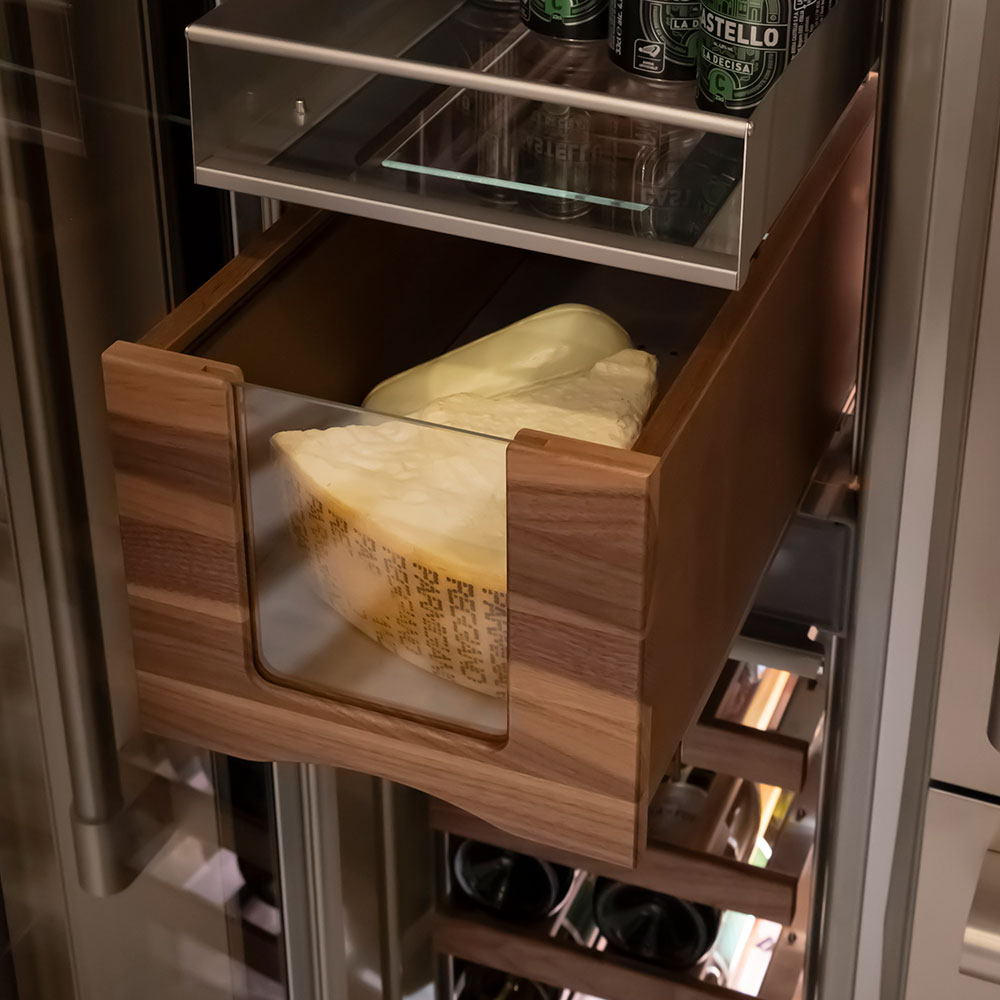

Cheese drawer YES

Set of knives YES

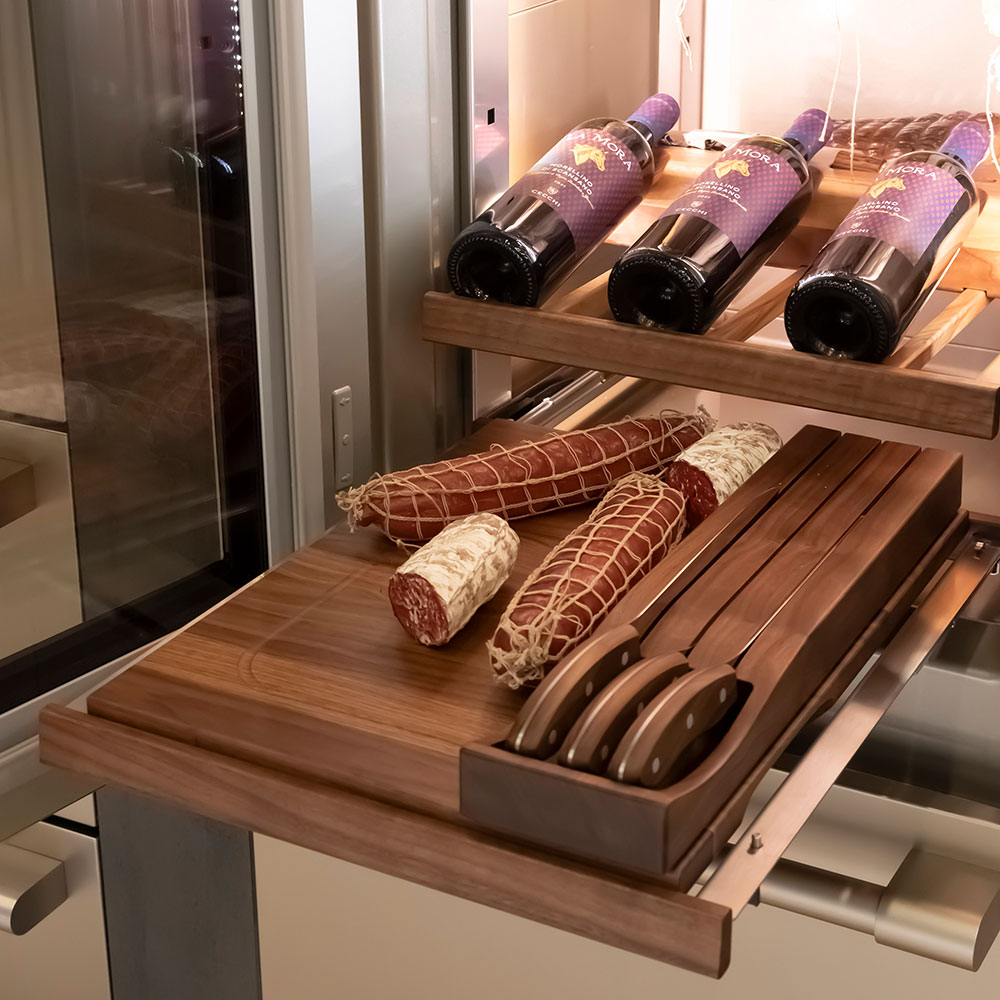

Prosciutteria kit YES

Door storage compartment NO

Bottle trap YES

Sigar drawer YES

Beverage drawer YES

Beverage shelf YES

Beverage removable shelf YES

Chocolate kit NO

ENERGY LABEL

Energy class E

Energy consumption [kWh/year] 183.0

Volume frigo 283.0

Volume freezer 134.0

Total net volume 416.0

Wine storage bottles 81.0

Energy noise level 41.0

Product details

Made in Italy

TriMode™: Total Flexibility, make the bottom drawer a refrigerator, fresh food space, or freezer with the control menu

ProVent™: Uniform air circulation maintains consistent temperatures throughout the appliance resulting in better food preservation

OptiView™: OptiView LED lights

ProVent™: Uniform air circulation maintains consistent temperatures throughout the appliance resulting in better food preservation

Humidity Control: Choose between high, medium and low humidity – particularly important for wine storage

Total No Frost: Temperature control helping mitigate cooling loss when opening the refrigerator door. No more frost build-up that requires defrosting

EquiLance™: Achieve a seamless built-in look with Fhiaba’s innovative door hinge

Sabbath Mode

Anti-Vibration: Vibration protection shields wine bottles from rattling when stored inside the wine cooler

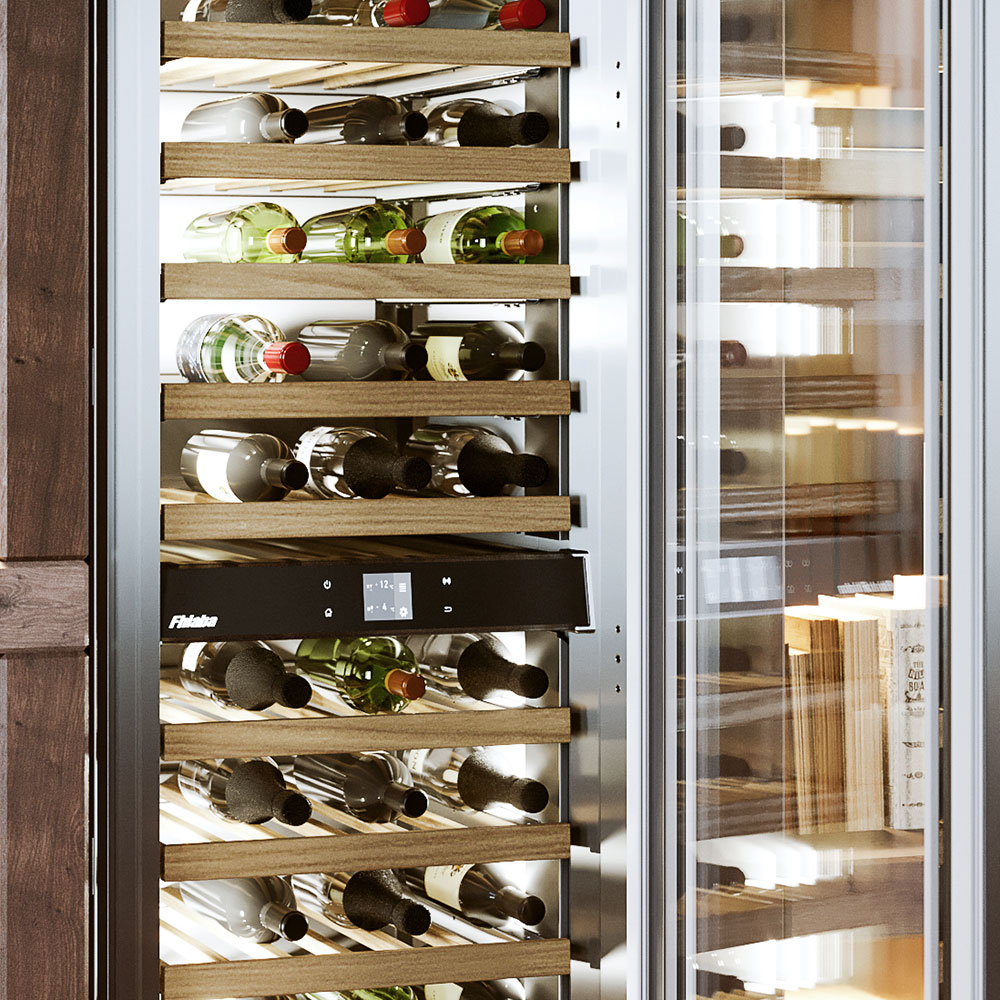

Wine Cellar Natural Wood Shelves: Natural beechwood provides optimal wine storage preserving wine flavor and appearance

Wine Cellar UV Protection: Triple-layer bronze glass doors protect against UV rays and direct heat from sunlight

Humidity control

The Fhiaba Access menu enables the preferred humidity level to be chosen, between high, medium ; and low, ensuring the correct preservation of corks, a fundamental element for the storage of fine wine.

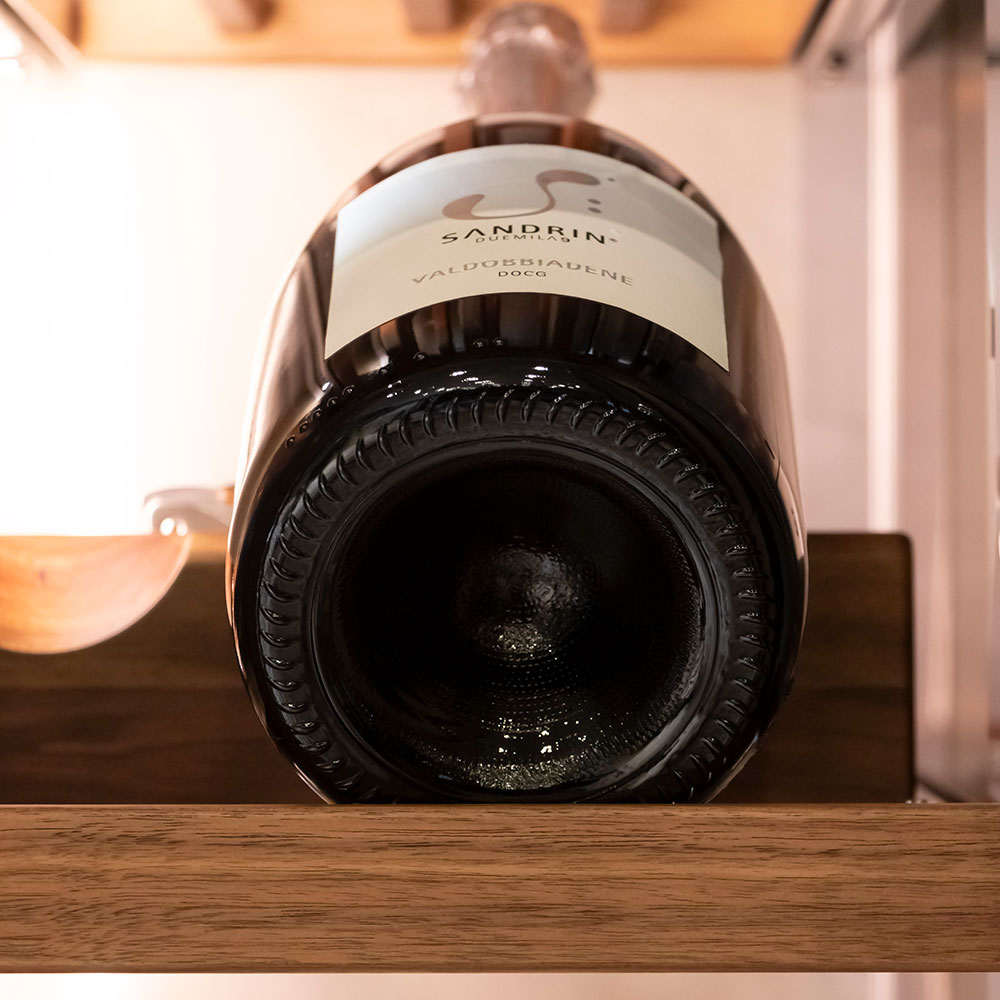

Canaletto Walnut Shelves

Fhiaba wine cellars feature exquisite shelves crafted from premium Canaletto walnut by skilled artisans in Friuli. Designed to maximize every inch of storage space, they elegantly accommodate bottles of all shapes and sizes. Fully extendable and equipped with soft-close technology, these shelves ensure smooth, quiet operation while minimizing vibrations—preserving your wine in perfect conditions

Triple-layer glass door

The doors of the Wine Cellar models are darkened with tinted glass to protect bottles from the damaging effects of light. Fhiaba wine cellars are the only ones with triple-layer bronze glass doors to ensure maximum protection from UV rays and from sudden changes in the external room temperature.

Tactile Colours

Our colour studies have led Fhiaba to the new frontier of Made in Italy products. The undercounter line now comes in brushed stainless steel with elegant, eye-catching style. Make a visual impression in twelve artfully-studied colours from Fhiaba’s designes .

Total No Frost

100% automatic system which eliminates the defrosting operations of the fridge, fresh food and freezer compartments. In addition it enables the temperature to be restored more quickly after opening thanks to the notable speed of freezing.

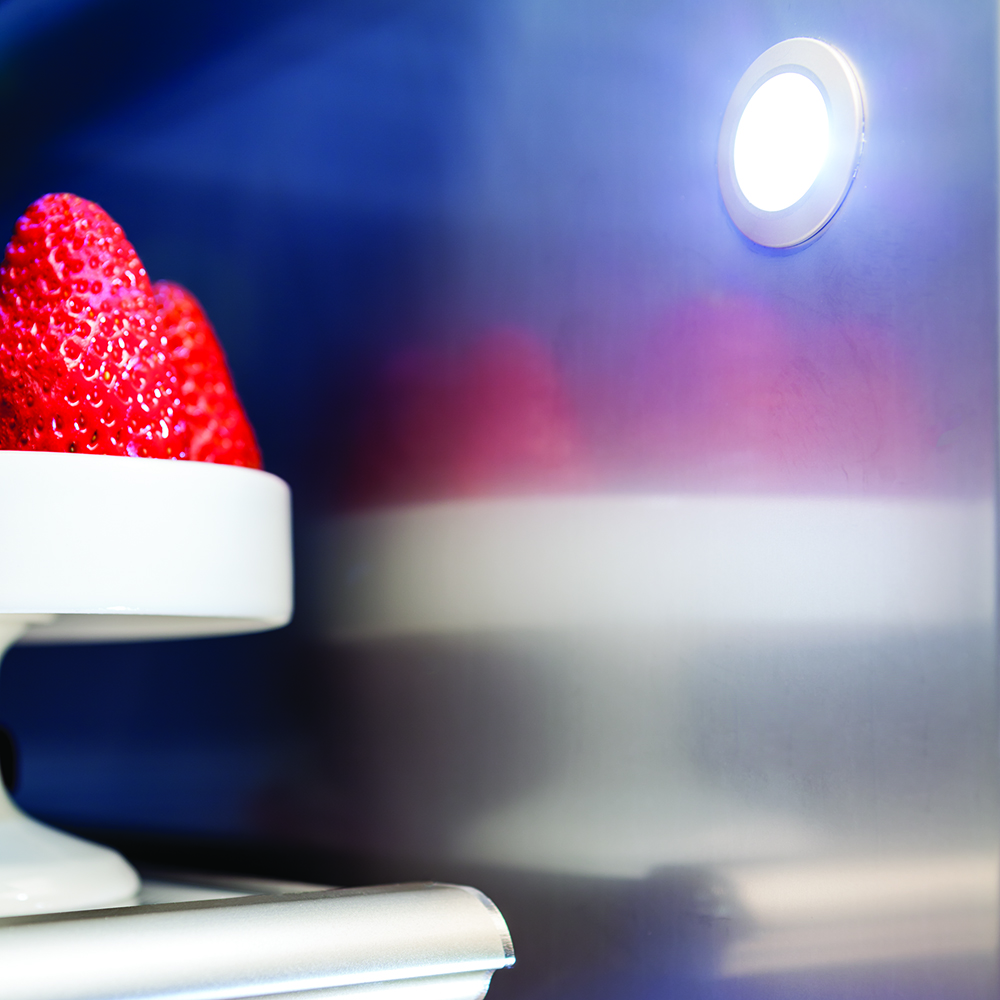

OptiView™

Optiview: multi - LED light array (top and side interior) provides excellent illumination to the entire interior.

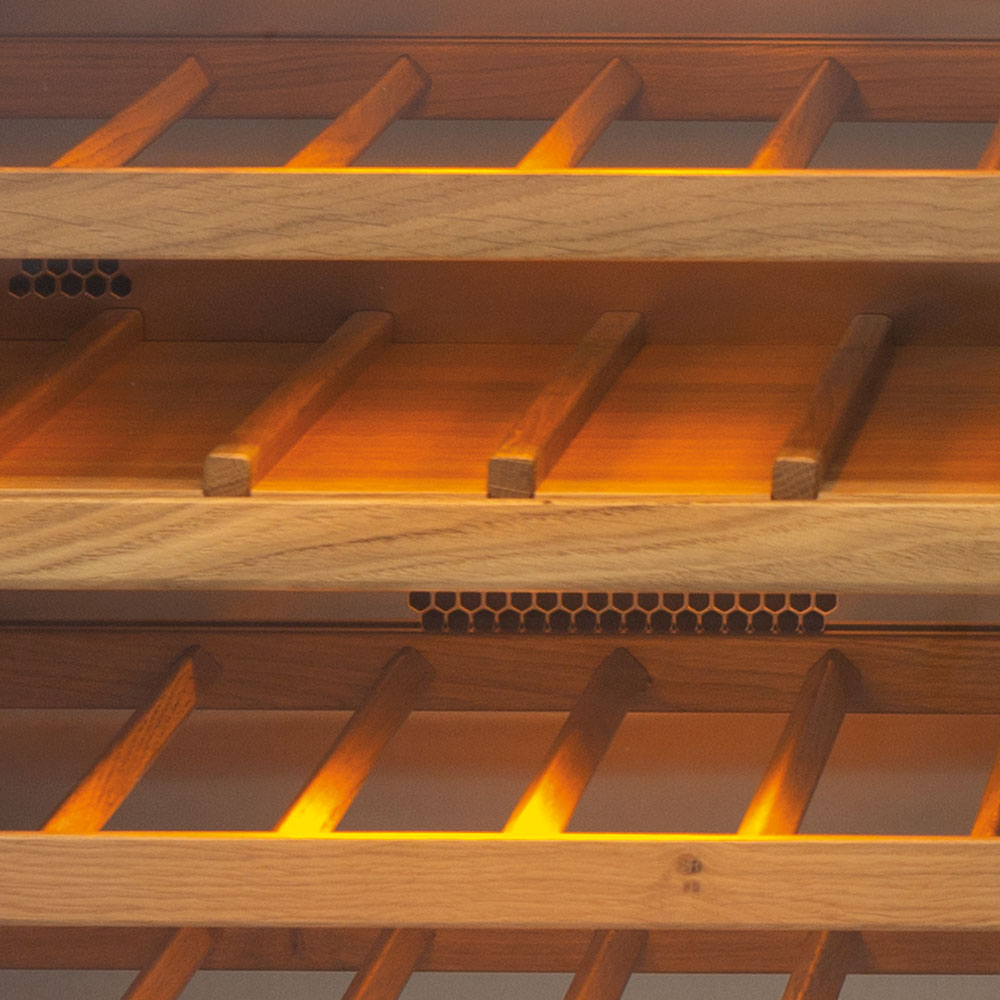

Amber LED lighting

Innovative amber LED lighting technology. Amber light does not interact on a molecular level with the wine, does not contain ultraviolet rays and emits little heat.

Anti-Vibration

Vibration protection guaranteed by insulation of the compressors and soft-closing devices installed on all bottle storage shelves.

Canaletto Walnut Shelves

Humidity control

The Fhiaba Access menu enables the preferred humidity level to be chosen, between high, medium and low, ensuring the correct preservation of corks, a fundamental element for the storage of fine wine.
